1pc Micro 365 Motor PRI-365SV-14175 Dual 2.3mm Shaft 12V 14.4V 18V 24V 10500RPM Mini 28mm Electric Motor DIY Home Sweeper Robot
1pc Micro 365 Motor PRI-365SV-14175 Dual 2.3mm Shaft 12V 14.4V 18V 24V 10500RPM Mini 28mm Electric Motor DIY Home Sweeper Robot
Product Description
Permanent Magnet Motors
Specification:
1.Model: PRI-365SV-14175

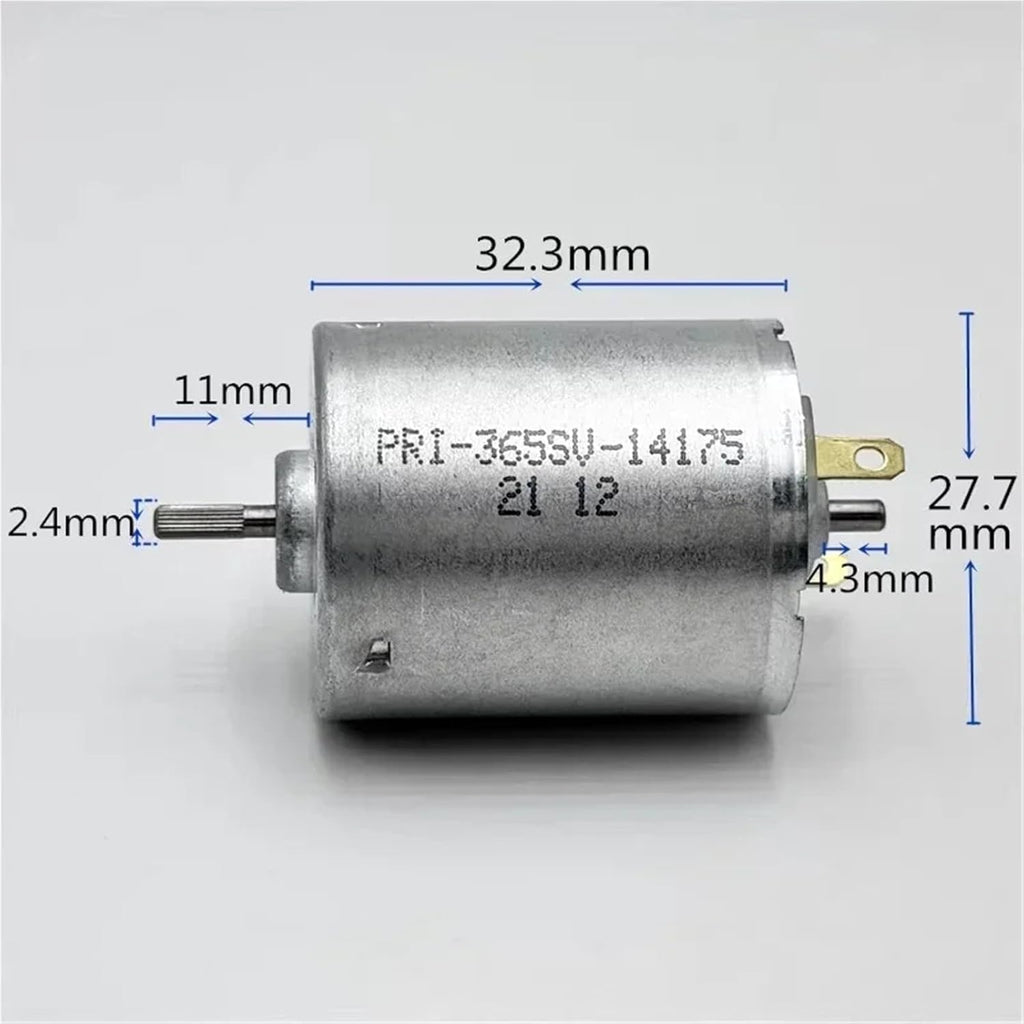

2.Motor size: 27.7mm*32.3mm
3.Output shaft diameter: front shaft 2.4mm knurled shaft
4.Output shaft length: front shaft 11mm (include step height)
5.Weight: 56g
6.Voltage range: 6.0V-24.0V
7.Test data:
Voltage:6.0V Current:20mA No-load speed:2600RPM
Voltage:12.0V Current:28mA No-load speed:5200RPM
Voltage:14.4V Current:34mA No-load speed:6200RPM
Voltage:18.0V Current:38mA No-load speed:7800RPM
Voltage:24.0V Current:60mA No-load speed:10500RPM
=========================
Package List:
Motor x 1PC
==========
Hign-concerned Chemical : None
Model Number : Mini 365 Motor
Construction : Permanent Magnet
Protect Feature : Explosion-proof
Type : Micro Motor
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Model : PRI-365SV-14175
Motor size : 27.7mm*32.3mm
Output shaft diameter : front shaft 2.4mm knurled shaft
Weight : 56g
Suitable voltage : 6V-24V
Speed range : 2600RPM-10500RPM
