1pc CJWP08 Micro M20 Diaphragm Water Pump 3V 3.3V 3.7V Small Mini Self-priming Suction Water Pump Liquid Pump for Sweeper Robot
1pc CJWP08 Micro M20 Diaphragm Water Pump 3V 3.3V 3.7V Small Mini Self-priming Suction Water Pump Liquid Pump for Sweeper Robot
Product Description
Pumps
Specification:

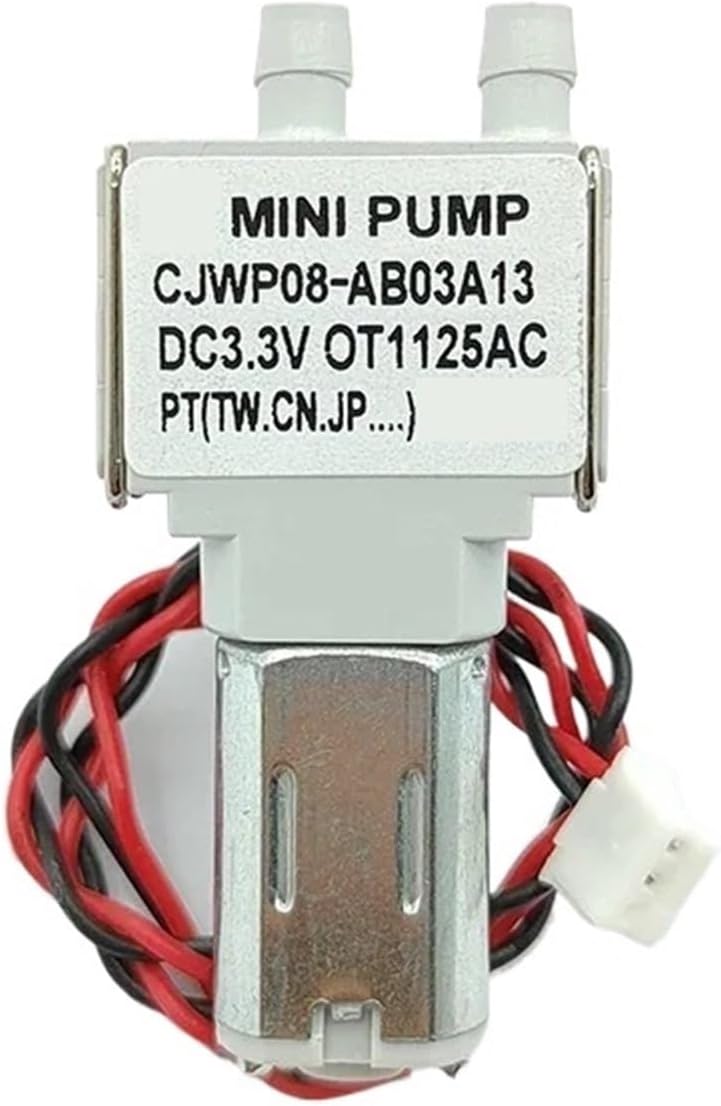

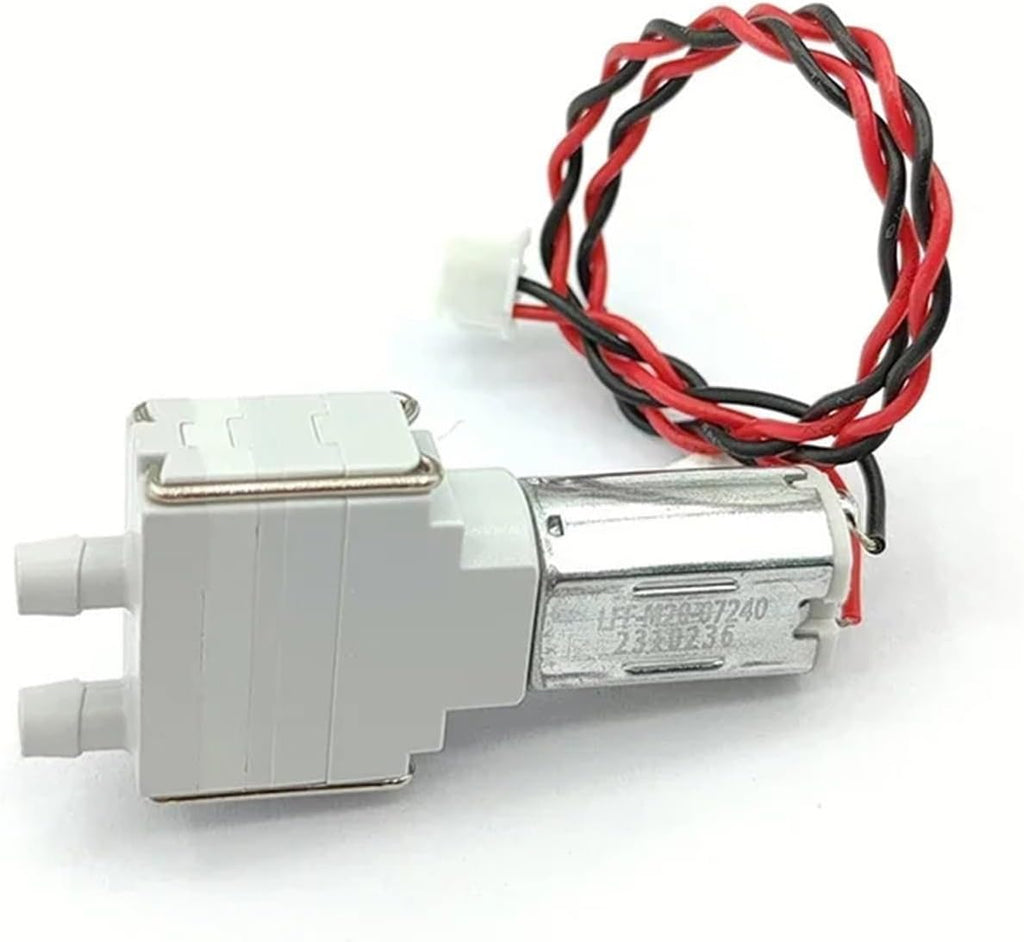

micro mini water pump, liquid pump, the motor adopts M20 micro motor,
which is a diaphragm pump that can self suction and be used as a micro water pump. It can also be used as a negative pressure pump, air extraction pump, and micro vacuum pump. The applicable voltage is DC3.0V-3.7V, and the rated voltage is DC3.3V.
2.Model: CJWP08-AB03A13
3.Weight: 8g
4.Rated voltage: 3.3V
5.Suitable voltage: 3.0V-3.7V
6.Test data:
Voltage:3.0V Working current:85mA
Voltage:3.3V Working current:95mA
Voltage:3.7V Working current:105mA
7.Note: The design of the water outlet of this pump is in a reduced shape,
indicating that the flow rate of this pump is definitely relatively small. It is a very small water pump with a very small power, about 0.3W, so its flow rate is estimated to be at most 0.3L/min.
=========================
Package List:
Mini Pump x 1PC
==========
Hign-concerned Chemical : None
Application : Metering
Structure : Diaphragm Pump
Model Number : Mini M20 Water Pump
Pressure : Low Pressure
Usage : Water
Fuel : Electric
Power (W) : Electric
Model number : CJWP08-AB03A13
Type : Mini Water Pump
Rated voltage : 3.3V
Suitable voltage : 3.0V-3.7V
Pump weight : 8g
